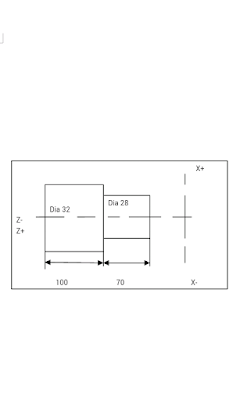

SIEMENS PROGRAMMING SIMPLE METHODE (G90)

HARSH.MPF (Main prog name)
N1 G90 G71 G94 F100; (ACS ,metric input , feed rate , feed)
N2 G75 X0 Z0 ; (fixed point approch ref. point )
N3 M06 TO6 DO1; (select tool no 6 )
N4 M03 S100 ; ( spindle clockwise at speed of 100)
N5 M07; (coolant on)
N6 G00 X32 Z2 ;
N7 G01 X31 Z0 ;
N8 G01 X31 Z-70 ;
N9 G00 X32 Z-70 ;
N10 G00 X32 Z2 ;
N11 G01 X30 Z0 ;
N12 G01 X30 Z-70 ;
N13 G00 X32 Z-70 ;
N14 G00 X32 Z2 ;
N15 G01 X29 Z0 ;
N16 G01 X29 Z-70 ;
N17 G00 X32 Z-70 ;
N18 G00 X32 Z2 ;
N19 G01 X28 Z0 ;
N20 G01 X28 Z-70 ;
N21 G00 X32 Z2 ;
N22 G75 X0 Z0 ; (ref point )
N23 M05 ; (spindle stop )
N24 M09 ;  (coolant off)
N25 M30;   (EOB)
